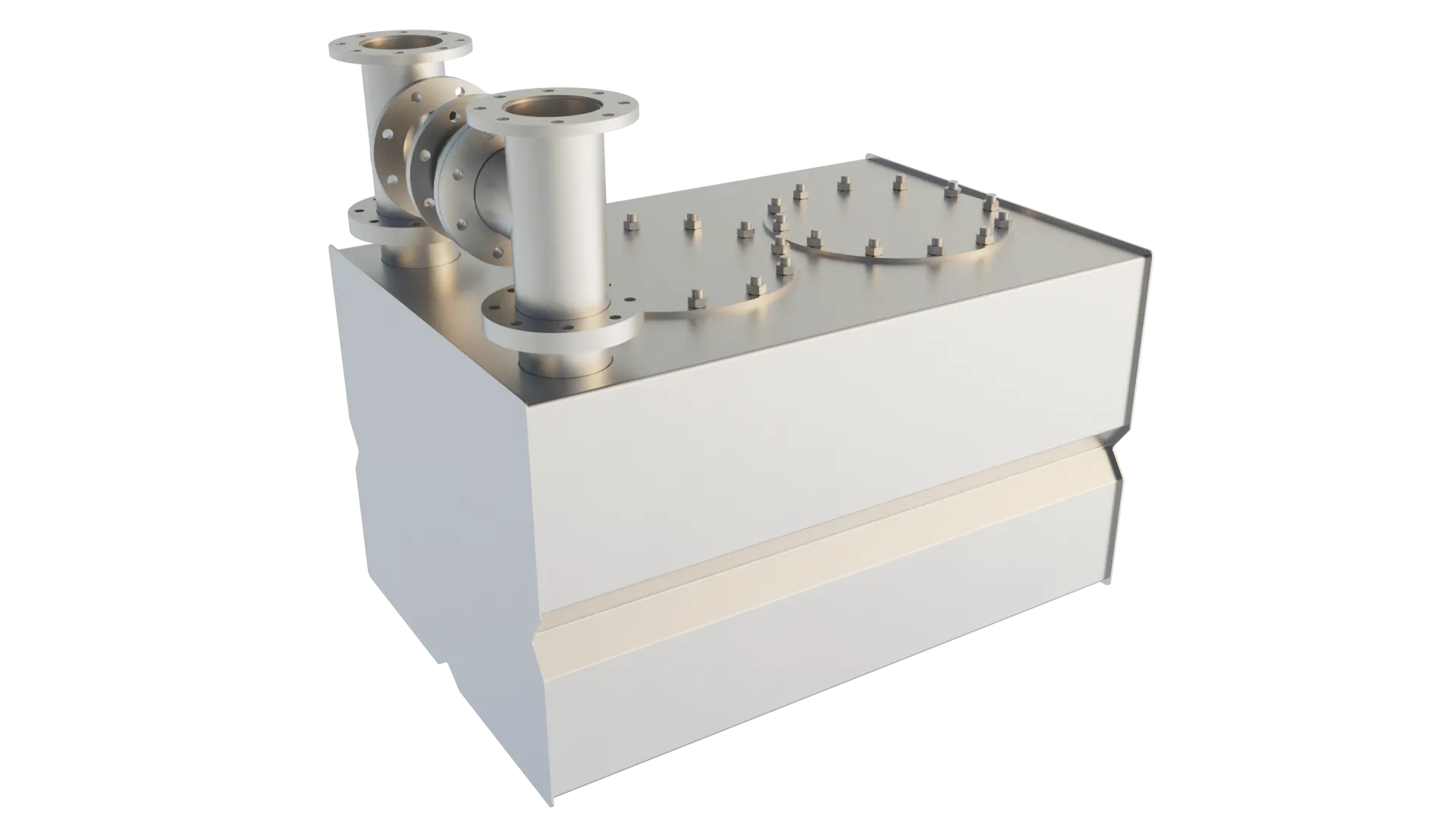

Emission Control
Diesel particulate filter systems that trap the soot and fine particulate a diesel engine emits: wall-flow filtration with a regeneration strategy matched to your duty cycle, kept within the engine’s back-pressure limit and designed to sit alongside NOx control.
Exterior Interior See It Inside

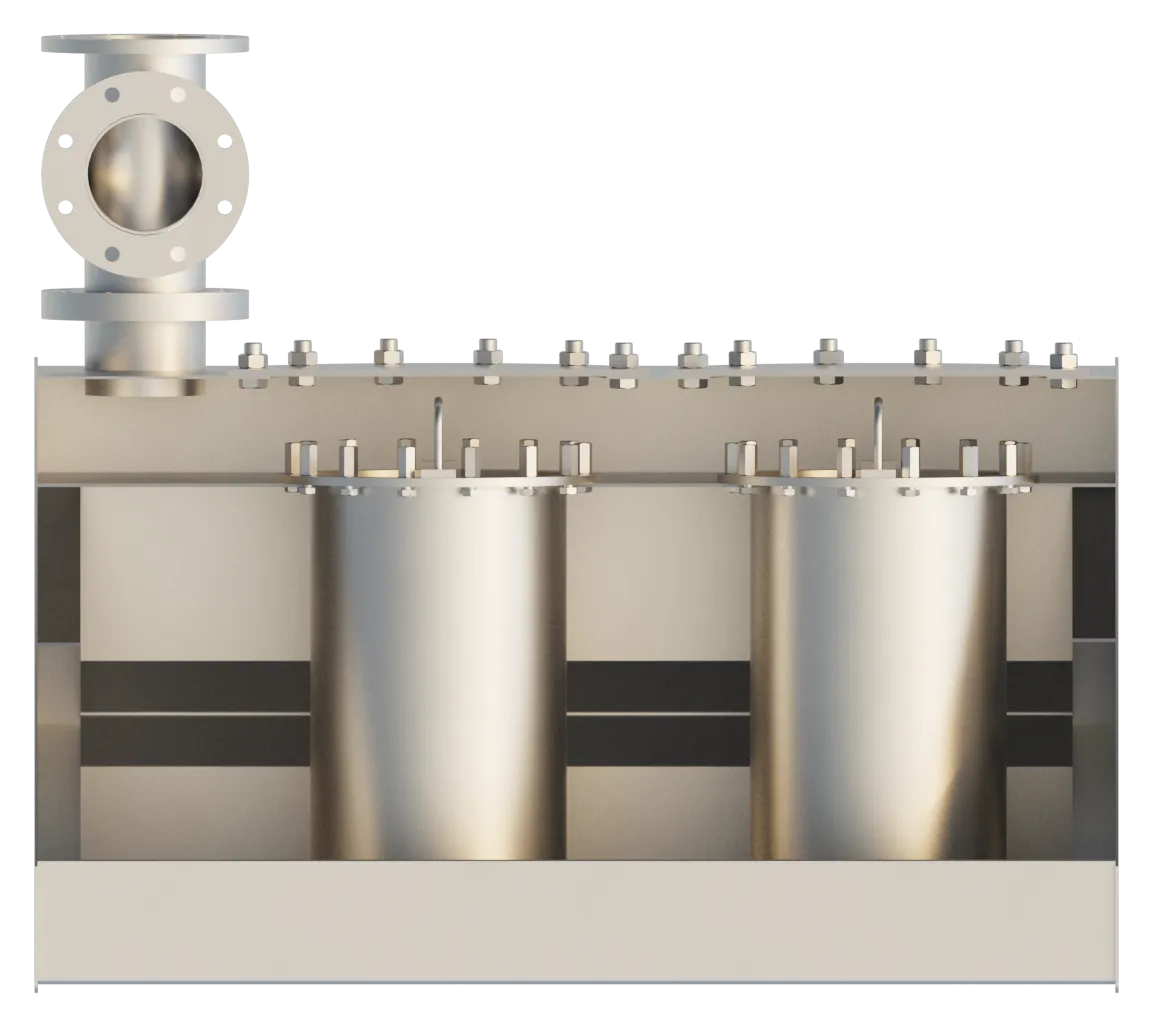

Drag the handle to compare the closed housing with the cutaway and see the alternately plugged channels that force the gas through the filter wall.
A wall-flow filter is a porous medium — a ceramic honeycomb (cordierite or silicon carbide) or a sintered-metal element where the duty calls for a tougher, readily regenerable substrate — whose channels are alternately plugged at each end, so exhaust has no path that bypasses the medium: it is forced through the porous walls, and the soot is left behind. A clean wall captures particles deep in its pore structure; as soot builds, the surface cake itself becomes the filter and efficiency rises. The captured carbon is then oxidised back to CO₂: passively when the exhaust runs hot enough, actively when the duty cycle doesn’t deliver it.
Built To Your Specification
Soot control is not a bolt-on. The filter, its regeneration strategy, the back-pressure budget and the interaction with any downstream SCR all have to be resolved together against the engine’s real duty, and standby, low-load diesels are where that judgement counts most.
We take the engine data, the real duty cycle (especially low-load and standby running), the fuel and oil specification, and the particulate limit, whether the Stage V particle-number limit or a national soot-filter mandate such as Germany’s 44. BImSchV.
Engineers size the wall-flow filter and choose a regeneration strategy (passive where the exhaust runs hot enough, active where it doesn’t) and resolve the interaction with any downstream SCR.
The filter housing (with provision for ash cleaning and, where required, an upstream oxidation catalyst) is fabricated and quality-checked at our own facility.
Systems are installed and commissioned with the working pressure drop verified across the regeneration cycle, and documentation handed over on completion.
From the Knowledge Hub
How a wall-flow filter captures soot, why regeneration is the hard part for lightly loaded engines, the back-pressure trade-off, and where particulate control sits alongside SCR in the exhaust line.
Read the articleCapabilities
What particulate control demands on real (and especially standby) diesels.
Compliance
Wall-flow filtration that reaches the strict targets (including the Stage V particle-number limit and national soot-filter mandates) that in-cylinder measures alone cannot.
Regeneration
Passive regeneration where the exhaust runs hot enough, active where it doesn’t, confronting low-load, standby running head-on rather than assuming the self-cleaning behaviour of a hard-working engine.
Back-pressure
The working pressure drop kept inside the engine maker’s limit across the whole regeneration cycle (not just when the filter is clean) so the engine never has to be derated.
In-house
Filter, oxidation catalyst, regeneration and any downstream SCR engineered together as a single exhaust line, one responsible partner for particulate, NOx and noise.
Applications
Diesel exhausts across mobile and stationary plant, sized to the duty cycle and the particulate limit that applies.
Data centers
Standby diesel gensets on data-centre campuses (the hard, low-load case) meeting national soot-filter mandates without relying on regeneration the duty rarely allows.
Read morePower generation
Diesel engine plant for emergency and prime power, with a regeneration strategy matched to how the units actually run.
Read moreIndustrial & EPC
EU Stage V mobile and non-road engines, and US EPA Tier 4 Final plant, where the particle-number limit effectively mandates a wall-flow filter.
Read moreMarine & offshore
Particulate control on marine and harbour-craft diesels, designed for the space and motion of a vessel.
Read moreOil & gas
Diesel-driven equipment on process and pipeline sites, with particulate control integrated into the exhaust line.
Read moreSend us the engine data, the real duty cycle and the particulate limit you have to meet. Our engineers will design a filter and regeneration strategy around it.
