Noise Control
Absorptive and reactive silencers for the intake and discharge of blowers, fans and compressors, tuned to the broadband rush and the blade-passing or lobe-passing tones these machines produce, and sized to keep pressure loss within the budget the machine can accept.

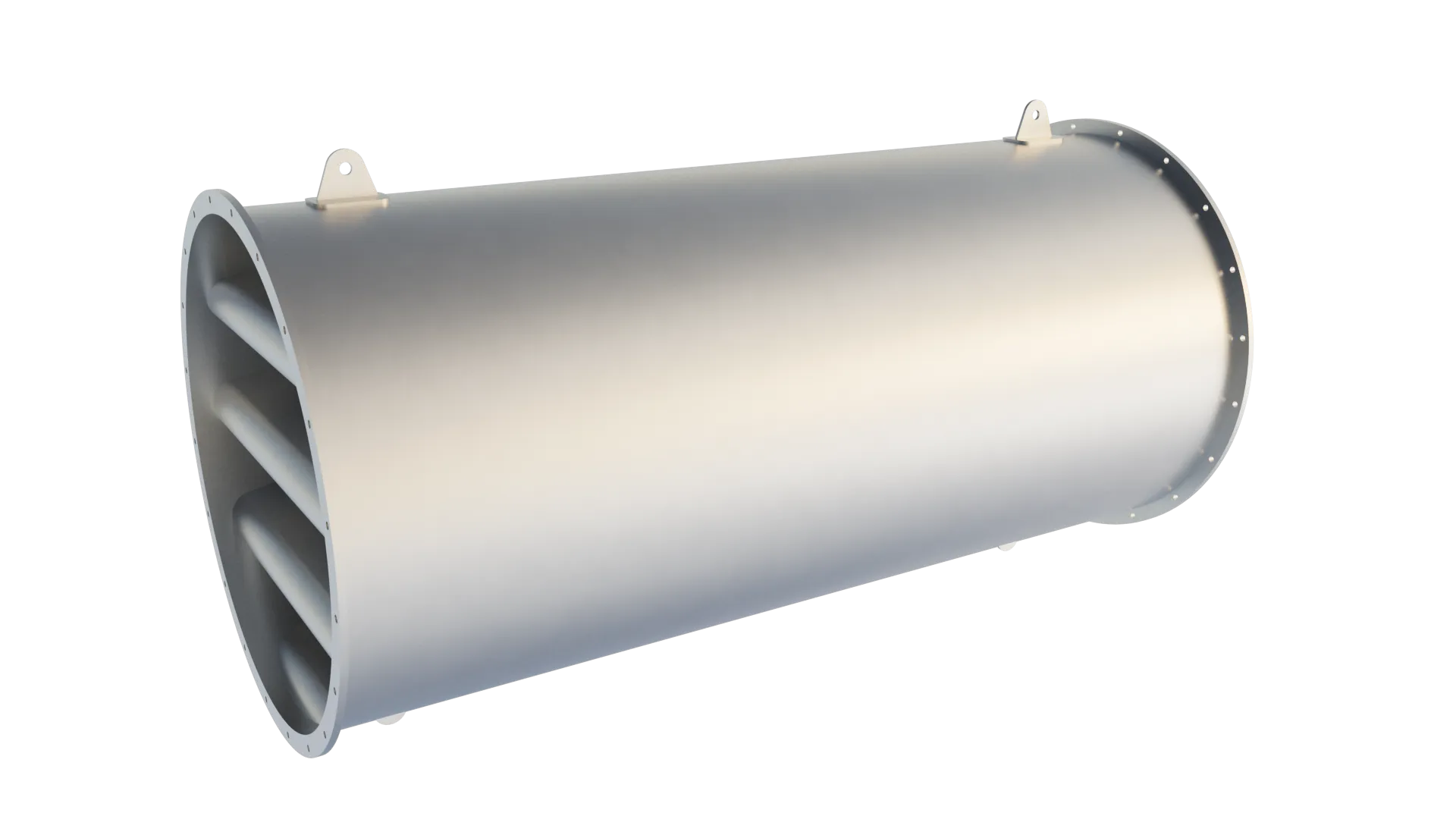

Exterior Interior See It Inside

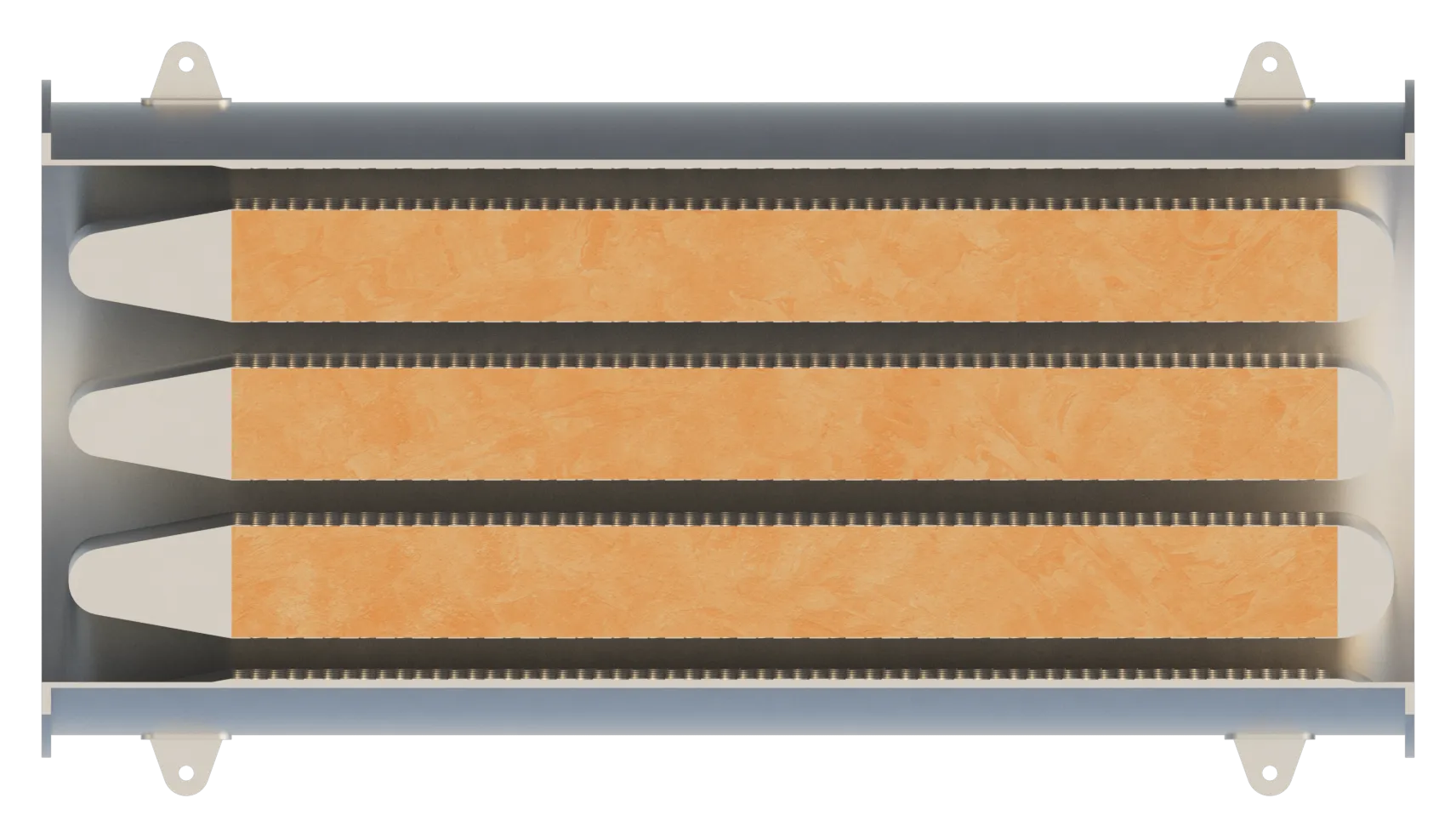

Drag the handle to compare the closed shell with the cutaway and see how the internals tackle both broadband rush and discrete tones.
Blowers and fans produce two kinds of noise: broadband flow noise across the spectrum, and discrete tones at the blade- or lobe-passing frequency and its harmonics. An absorptive section (flow passages lined with acoustic fill behind perforated facings) soaks up the broadband and higher-frequency content, while reactive chambers tuned to the passing frequencies attenuate the low-frequency tones a purely absorptive design would miss. The split between the two is set by the machine’s measured spectrum, and flow areas are sized so the silencer never regenerates noise of its own.
Built To Your Specification
A blower silencer is matched to the machine and its duty. There is no catalogue part number. We size each one from the measured or predicted spectrum and the pressure-loss budget.
We take the blower or fan type and duty, the measured or predicted octave-band spectrum including the blade- or lobe-passing tones, the flow and temperature, and the noise target at its governing location.
Engineers split the attenuation between absorptive treatment and tuned reactive chambers, holding face velocities low enough that the silencer’s own flow noise never sets the floor under the achievable level, within the machine’s allowable pressure loss.
The silencer is fabricated and quality-checked at our own facility, in materials matched to the gas stream, with intake or discharge connections to suit the installation.
Units are installed and verified against the noise target, with documentation handed over on completion.
From the Knowledge Hub
A blower silencer leans on the same two mechanisms as an engine exhaust silencer: absorptive treatment for the broadband rush and reactive chambers for the discrete blade- or lobe-passing tones. This guide explains how the three silencer types attenuate noise and which design suits which frequency profile.
Read the articleCapabilities
What separates a matched blower silencer from a generic part.
Acoustic
Absorptive treatment for the broadband rush combined with reactive chambers tuned to the blade- or lobe-passing tones, sized to the machine’s measured spectrum, not a one-size class.
Flow
Flow areas sized so attenuation never costs the machine more pressure loss than its duty allows, and so the silencer does not regenerate noise of its own.
Materials
Carbon, stainless or coated steels and acoustic fill selected for the gas, temperature and any moisture or process carry-over.
In-house
Acoustic and mechanical design, fabrication and QA from a single source, one responsible partner for the result.
Applications
Intake and discharge silencing for rotary, centrifugal and positive-displacement machines across industry.
Industrial & EPC
Combustion-air, conveying and process blowers and fans, delivered to EPC contractors within a single scope of supply.
Read moreWater & waste
Positive-displacement and turbo aeration blowers on wastewater treatment, where lobe-passing tones dominate.
Read morePower generation
FD and ID fans and combustion-air blowers on boiler and engine plant, sized to the duct spectrum.
Read moreData centers
Large ventilation and cooling fans on data-centre campuses, engineered to strict boundary limits.
Read moreMarine & offshore
Engine-room and process ventilation fans aboard vessels and platforms, in compact arrangements.
Read moreSend us the machine type and duty, the spectrum or sound data, and the noise target. We’ll size a silencer matched to the machine within its pressure-loss budget.
