Pressure Control
Static devices that bring high-pressure gas or steam down to near-atmospheric pressure in controlled steps rather than one violent expansion, dividing the flow into many small jets to keep velocity, noise and erosion at the vent point within bounds. Sized as standalone units or as the first stage inside a vent silencer.

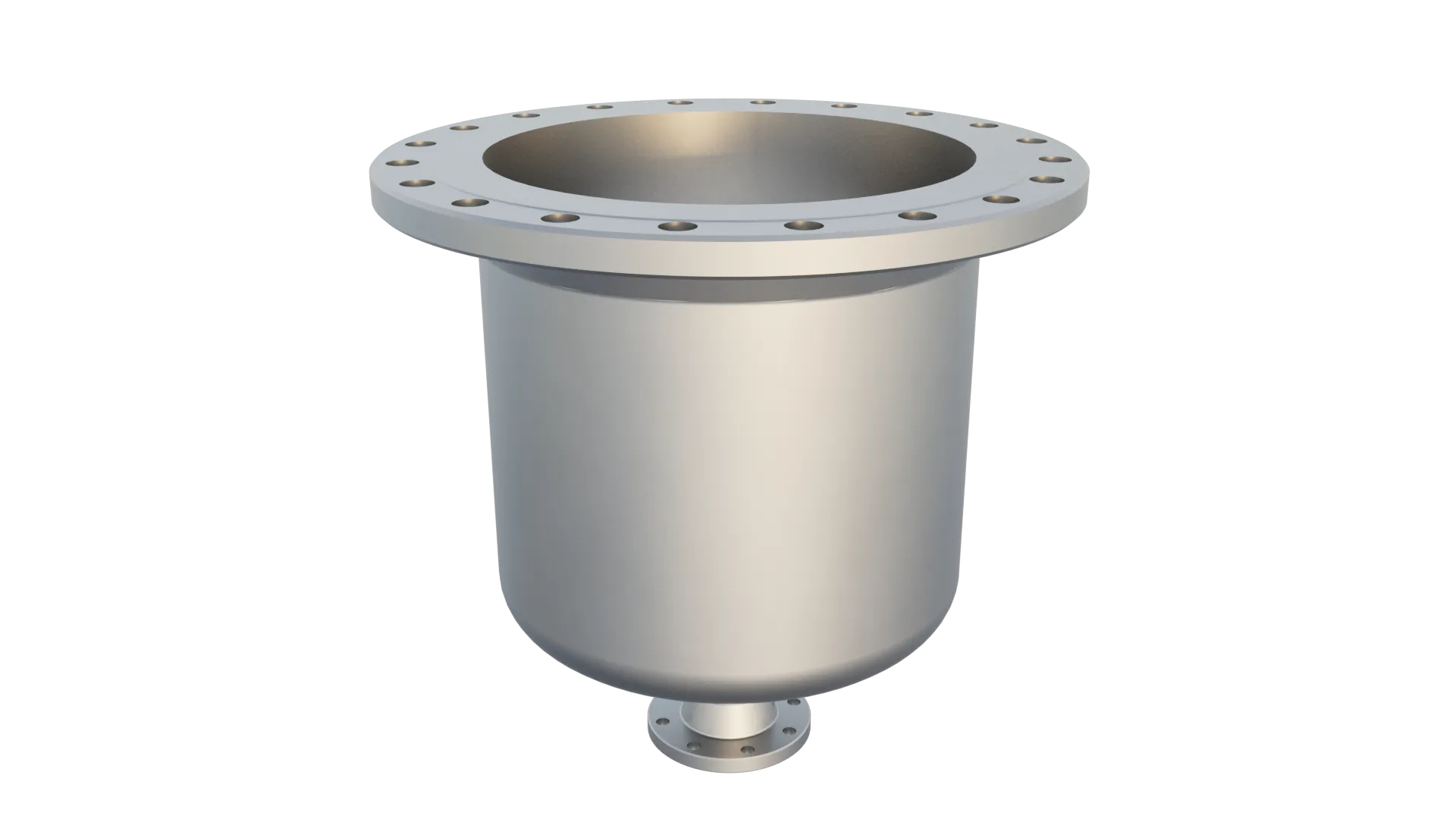

Body Stages See It Inside

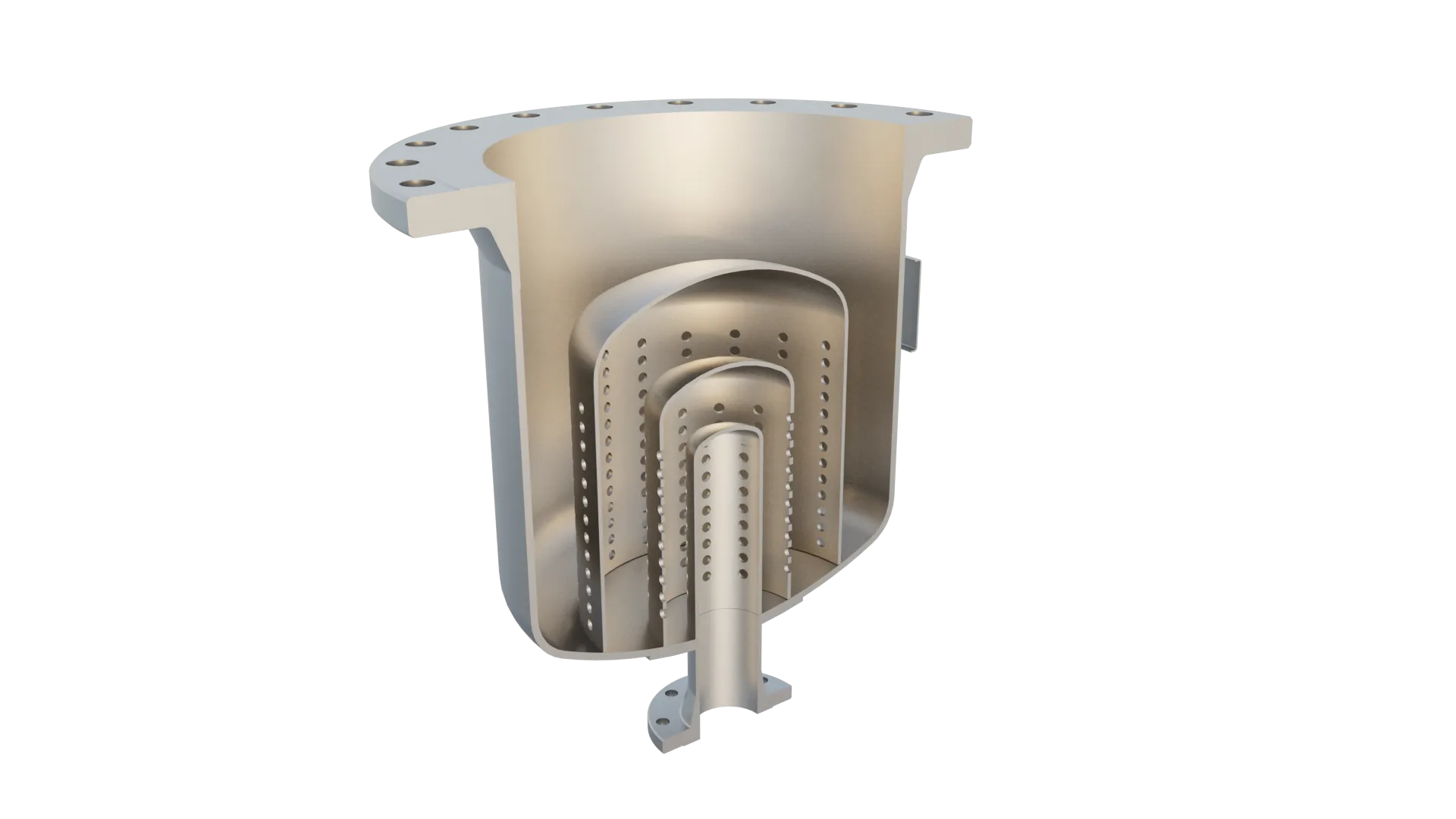

Drag the handle to compare the body with the cutaway and see the perforated stages that share the pressure drop.
A diffuser replaces a single uncontrolled expansion with a structured one: the flow passes through one or more perforated stages, each taking a share of the total pressure drop, so no stage sees an extreme pressure ratio and the exit velocity ends up far below that of a raw vent. Dividing the flow also shifts jet noise upward in frequency (away from the far-carrying low frequencies and into the range absorptive packing handles best) while breaking up the core jet so it never impinges directly on the silencer internals downstream.
Built To Your Specification
The diffuser deliberately sits where the flow is most violent, taking the abuse so the silencer, stack and surroundings don’t. Six process inputs define the design, and each one moves the answer.
We take the upstream pressure and temperature, the fluid and its condition (clean gas, superheated steam or wet steam with droplets) and the governing mass-flow case: emergency depressuring, start-up venting or a stuck-open valve.
Engineers divide the pressure drop across perforated stages so no stage sees an extreme ratio, sizing the flow area to control exit velocity within the back-pressure budget the upstream relief or control valve can accept.
The diffuser (standalone or as the first stage inside a vent silencer) is fabricated at our own facility in materials and to a fabrication quality matched to the erosion duty, with inspection access designed in.
Units are installed, with drainage provisions in steam service, and handed over with documentation on completion.
From the Knowledge Hub
Why unrestricted high-pressure venting brings noise, mechanical loads and erosion all at once, how staged letdown solves it with many small jets, and the six process parameters that drive the design.
Read the articleCapabilities
What a pressure letdown diffuser exists to do.
Velocity
A drop too large to manage in one step divided across perforated stages, so the exit velocity ends up far below that of a raw vent, the quantity the diffuser exists to control.
Acoustic
Many small jets move the peak frequency of jet noise upward, away from the far-carrying low frequencies and into the range where atmospheric absorption and silencer packing work best.
Erosion
Sitting at the harshest point of the vent, the diffuser is conservatively sized for velocity and erosion and built in robust, inspectable materials, including low-temperature toughness where rapid depressuring chills the hardware.
Back-pressure
Flow resistance installed downstream of a safety, blowdown or control valve is designed inside the back-pressure budget that protective capacity leaves, never the other way around.
Applications
Any high-pressure gas or steam letdown or vent that must control velocity, noise and erosion, standalone or inside a vent silencer.
Oil & gas
The first stage on emergency depressuring and blowdown vents, taking the bulk of the drop ahead of the silencer.
Read morePower generation
Boiler start-up, safety-valve and turbine bypass steam vents, with drainage and erosion provisions for wet steam.
Read moreIndustrial & EPC
Continuous and intermittent process letdown across chemical and process plant, delivered within a single scope of supply.
Read moreNoise control

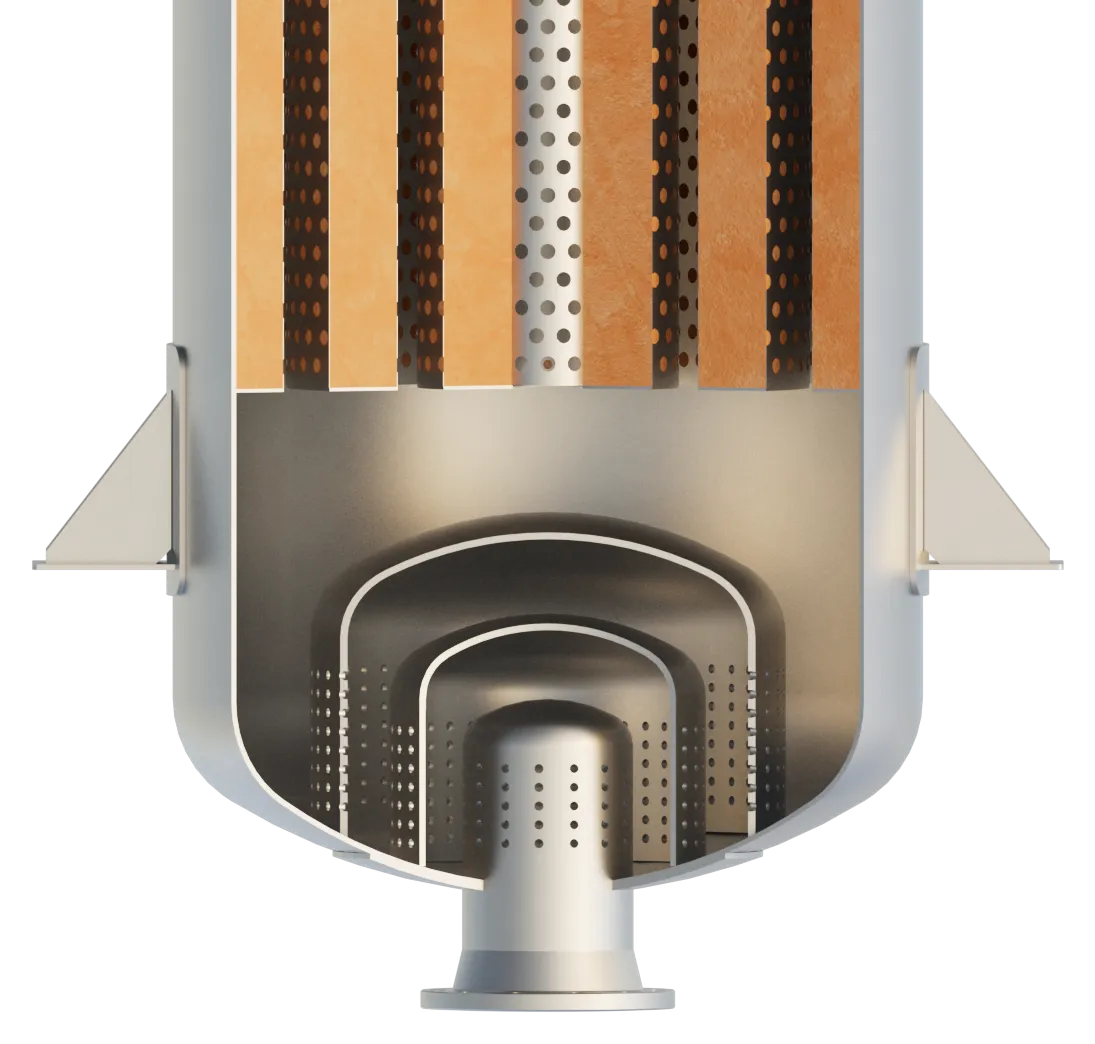

As the primary stage inside an Axces vent silencer, conditioning the flow and reshaping the spectrum before the absorptive section.
Read moreMarine & offshore
Relief and depressuring vents on offshore platforms, in compact arrangements with managed reaction loads.
Read moreSend us your upstream pressure and temperature, the fluid and its condition, the governing flow case, the allowable back-pressure and the noise target. We’ll tell you what the application needs.
