Noise Control
Silencers for the exhaust and inlet of industrial vacuum pumps, attenuating the pulsating, tonal discharge of liquid-ring, rotary-vane, claw and screw machines, and built to cope with the entrained moisture, oil mist and condensate that vacuum service brings.

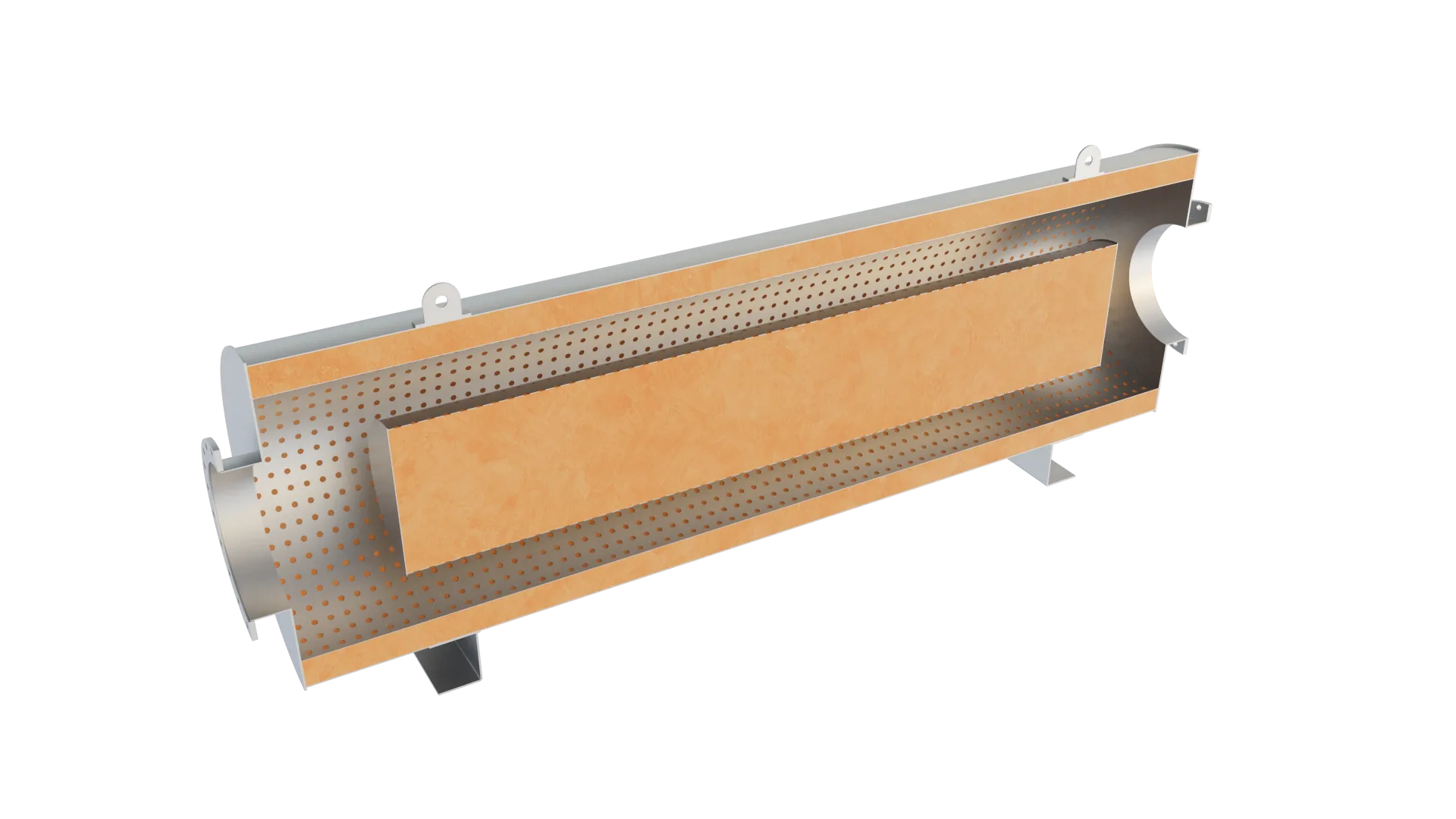

Exterior Interior See It Inside

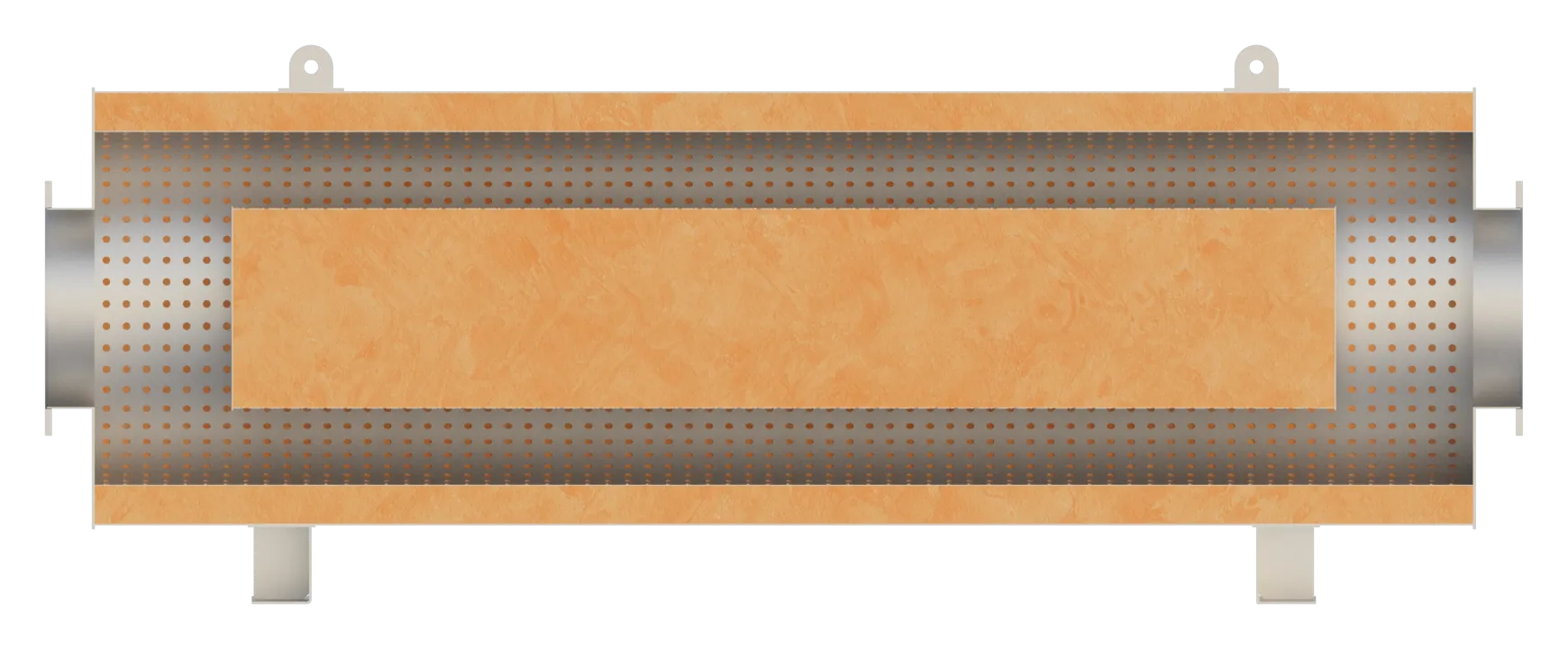

Drag the handle to compare the closed shell with the cutaway and see the chambers and drainage that handle a wet, pulsating discharge.
Vacuum pumps discharge a pulsating flow with strong tones at the pump’s operating and pumping frequency, often carrying water vapour, oil mist or condensate. Reactive expansion chambers tuned to those frequencies attenuate the low-frequency pulsation, with absorptive treatment where higher-frequency content allows; corrosion-resistant materials, drainage points and, where needed, a separation stage keep the entrained liquid from blinding the acoustic fill or pooling in the shell. Flow areas are sized to add minimal resistance, because back-pressure on a vacuum pump’s exhaust costs it capacity.
Built To Your Specification
A vacuum pump silencer is matched to the machine, the medium and the moisture. There is no catalogue part number. We size each one from the pump data and the noise target.
We take the pump type and capacity, the operating and pumping frequencies, the discharge composition (water vapour, oil mist, condensate or process carry-over) and the noise target at its location.
Engineers tune reactive chambers to the dominant tones, add absorptive treatment where the spectrum allows, and design the materials, drainage and any separation stage for the wet, potentially corrosive duty, within a minimal back-pressure budget.
The silencer is fabricated and quality-checked at our own facility in corrosion-resistant materials, with drain connections and mounting to suit the pump package.
Units are installed and verified against the noise target, with documentation handed over on completion.
From the Knowledge Hub
A vacuum pump silencer is sized to a target, not a catalogue number. This guide explains what dB(A), insertion loss and octave-band data actually mean when you specify acoustic performance, and the common mistakes that make a noise specification unbuildable.
Read the articleCapabilities
What vacuum service demands beyond a plain silencer.
Acoustic
Reactive chambers tuned to the pump’s operating and pumping frequencies, with absorptive treatment where the spectrum allows, matched to the machine, not a generic class.
Duty
Corrosion-resistant materials, drainage points and an optional separation stage so entrained water, oil mist and condensate can’t blind the acoustic fill or pool in the shell.
Flow
Flow areas sized to add as little resistance as possible, because back-pressure on the exhaust directly costs a vacuum pump its capacity.
In-house
Acoustic and mechanical design, fabrication and QA from a single source, one responsible partner for the result.
Applications
Exhaust and inlet silencing for liquid-ring, rotary-vane, claw and screw vacuum pumps across industry.
Industrial & EPC
Vacuum systems on chemical, pharmaceutical and process plant, delivered within a single scope of supply.
Read moreWater & waste
Vacuum pumps on wastewater, sludge and degassing duty, where the discharge is wet and corrosive.
Read moreOil & gas
Vacuum and vapour-recovery pumps on terminals and process sites, in materials matched to the medium.
Read morePower generation
Condenser air-extraction and vacuum systems on steam plant, sized to the discharge spectrum.
Read moreMarine & offshore
Vacuum and sewage systems aboard vessels and platforms, in compact, corrosion-resistant arrangements.
Read moreSend us the pump type and capacity, the discharge composition and the noise target. We’ll size a silencer built for the moisture and the tones, within a minimal back-pressure budget.
