Noise Control
Intake and exhaust silencers for gas turbine packages: high-frequency tonal whine at the intake, low-frequency broadband rumble at the hot exhaust, each engineered against the per-octave-band attenuation your site noise study allocates to it.
Exterior Interior See It Inside

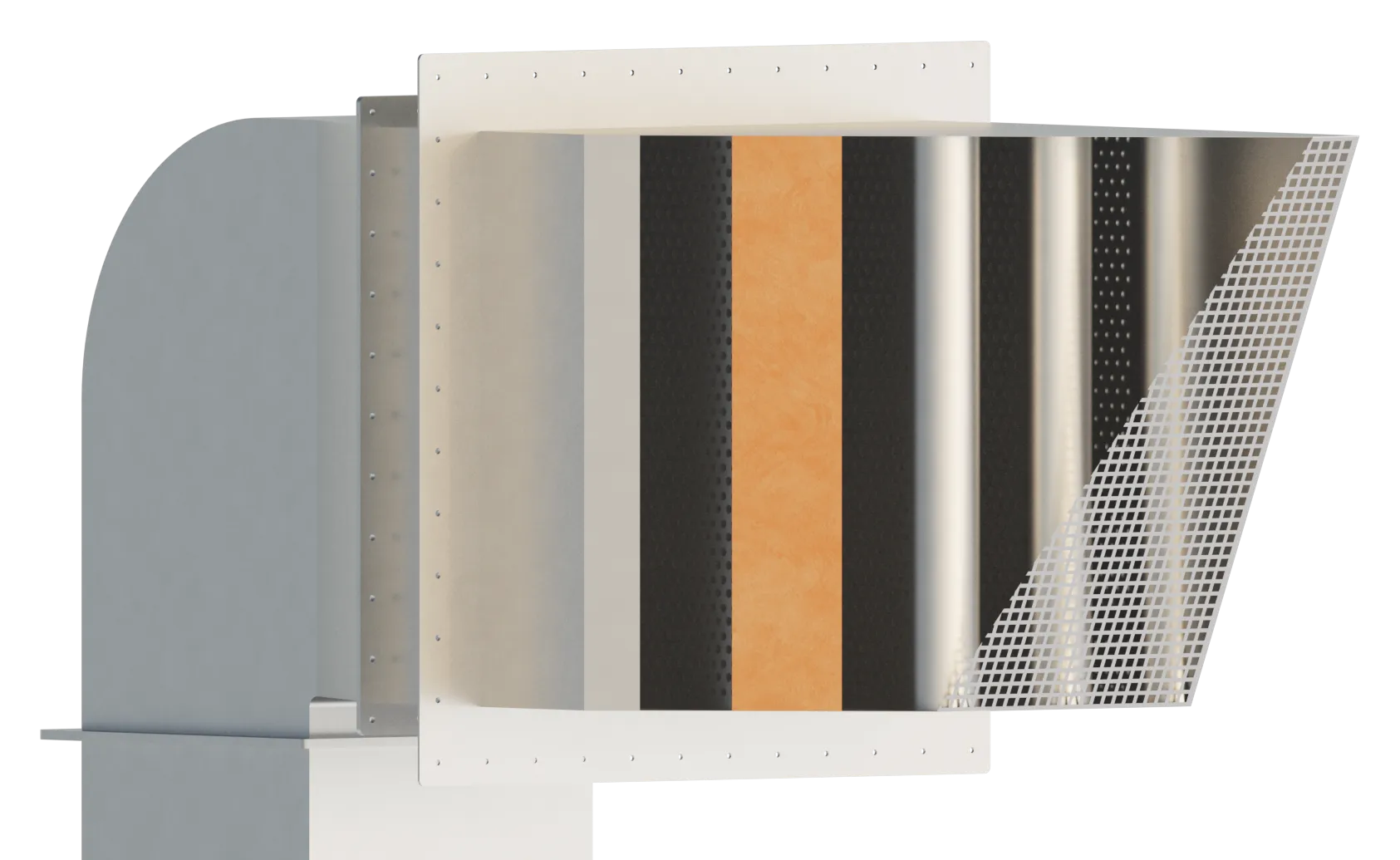

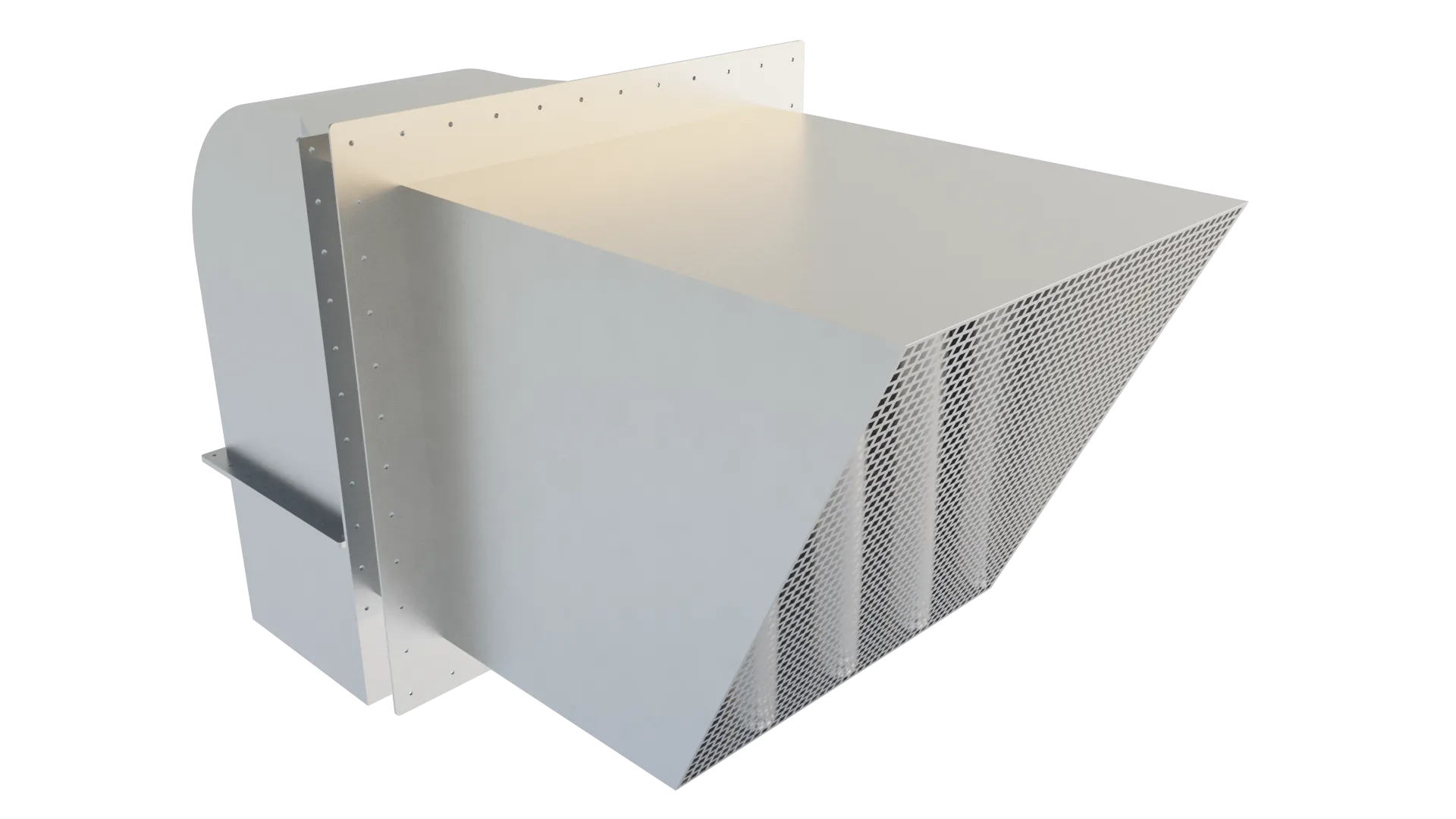

Drag the handle to compare the closed duct with the cutaway and see the absorptive splitters that do the work.
A turbine package opens to atmosphere at both ends, and the two paths could not be more different. The intake carries the compressor’s high-frequency, tonal whine; the exhaust carries low-frequency, broadband rumble in a gas stream several hundred degrees hot. Both are answered with absorptive splitter silencers: slim splitters and narrow airways for the intake, thicker splitters, wider airways and greater length to push the insertion-loss curve down the spectrum for the exhaust. Splitter geometry and face velocity are set so the silencer attenuates without regenerating noise of its own.
Built To Your Specification
There is no catalogue answer for a turbine silencer of this class. Each unit is sized from the turbine’s octave-band data and the boundary limit, with the acoustic and mechanical design developed together.
From the turbine’s octave-band intake, exhaust and casing data and the boundary limits, a site noise study allocates an allowable contribution to each path, yielding the required insertion loss per octave band.
Splitters, airways and length are sized for the target spectrum within the back-pressure budget, with thermal expansion, temperature-rated materials and infill protection engineered into the exhaust unit from the start.
Intake and exhaust silencers are fabricated and quality-checked at our own facility, in materials rated for the exhaust temperature and for gas-flow erosion.
Units integrate with the filter house or stack, are installed and verified against the boundary limit, with documentation handed over on completion.
From the Knowledge Hub
Why the intake whines and the exhaust rumbles, the splitter silencer concepts that answer each, and how a workable specification is worked back from the site-boundary limit through octave-band propagation modelling.
Read the articleCapabilities
What a turbine silencer needs beyond an overall dB(A) rating.
Acoustic
Intake and exhaust silencers specified against the required attenuation spectrum, the real specification, not a single overall dB(A) figure that says nothing about fit to the turbine’s spectrum.
Performance
Intake depression and exhaust back-pressure both degrade turbine output and efficiency, so cross-sections are sized generously and face velocity controlled rather than pushed to minimum dimensions.
Exhaust duty
Thermal-expansion provisions, temperature-rated materials, infill protected against flow erosion and structure robust to turbulence-induced vibration. The exhaust is as much a mechanical task as an acoustic one.
In-house
A complete noise-control scope from the site noise study through intake and exhaust silencer design to installation, one responsible partner across both paths.
Applications
Simple-cycle, combined-cycle and mechanical-drive turbine packages, each sized to its spectrum and the limits that apply at the site.
Power generation
Intake and exhaust silencers for base-load and dispatchable plant, where night-time limits are strictest and the exhaust or bypass stack governs.
Read moreData centers
Turbine-based prime and standby power for campuses, engineered to strict urban and mixed-use boundary limits.
Read moreOil & gas
Turbine-driven compressors and pumps on process plant and pipelines, where the package often sits close to occupied areas.
Read moreIndustrial & EPC
Combined heat and power turbine packages delivered to EPC contractors as part of a complete silencer and stack scope.
Read moreMarine & offshore
Gas-turbine generation on offshore platforms and large vessels, engineered for compact, weight-conscious arrangements.
Read moreSend us the turbine’s octave-band data, the boundary limits and receptor distances, and the duct or stack geometry. We’ll translate it into an intake and exhaust silencer specification.
