Noise Control
Custom-engineered absorptive and reactive silencers that cut exhaust and stack noise at the source, sized to your duct geometry, gas temperature and target insertion loss.

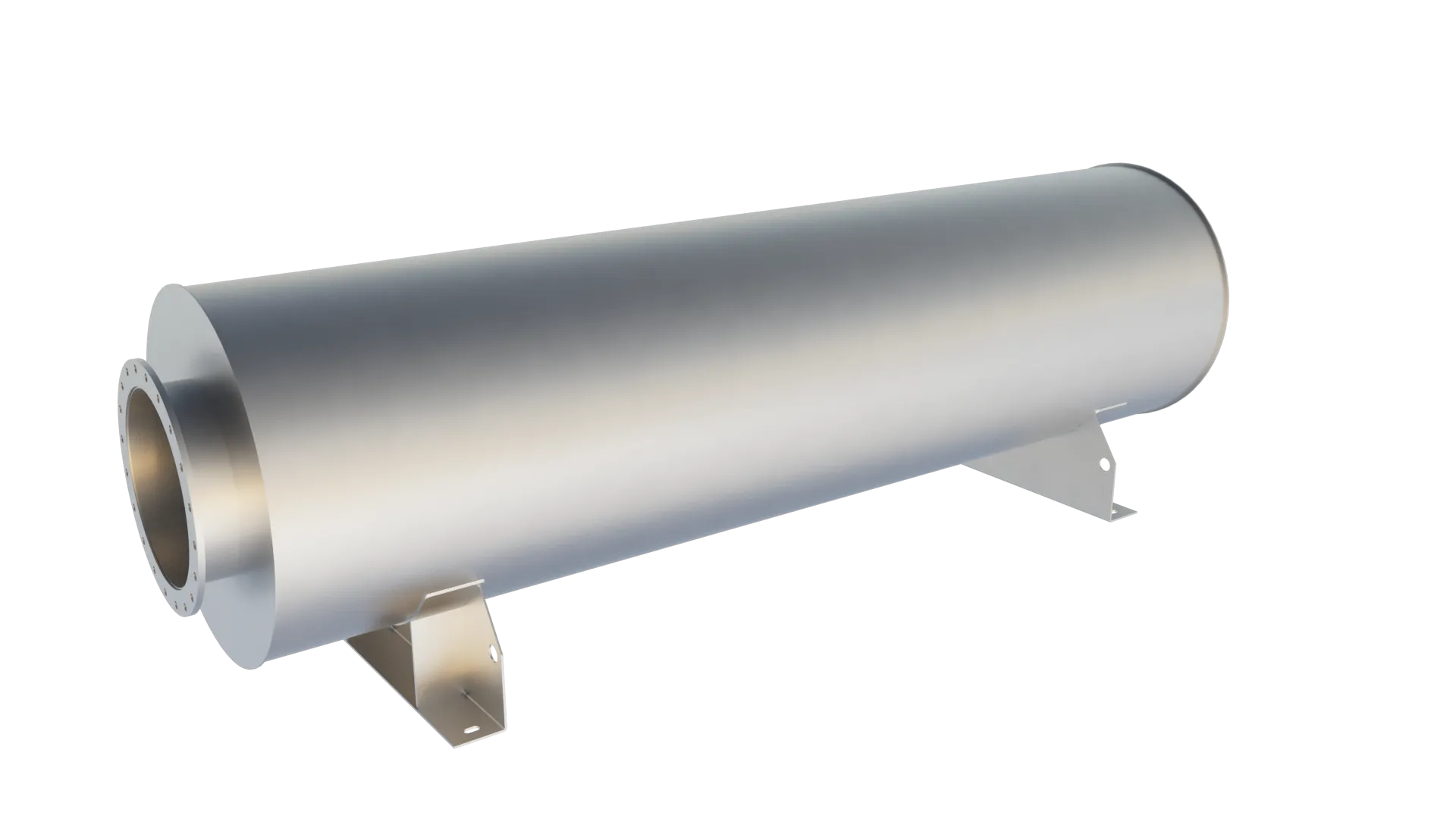

Exterior Interior See It Inside

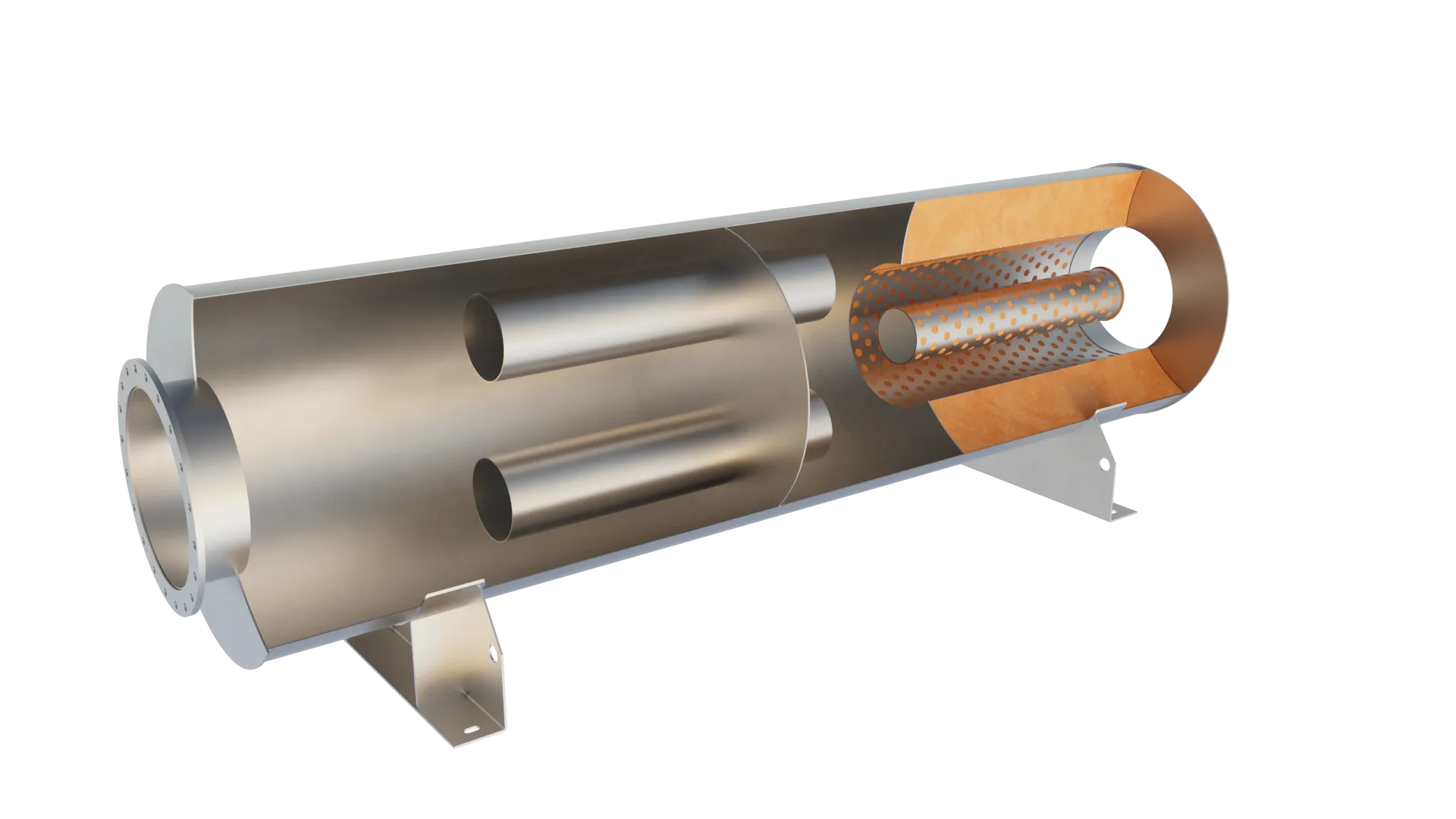

Drag the handle to compare the closed shell with the cutaway and see how the internal acoustic packing does its work.

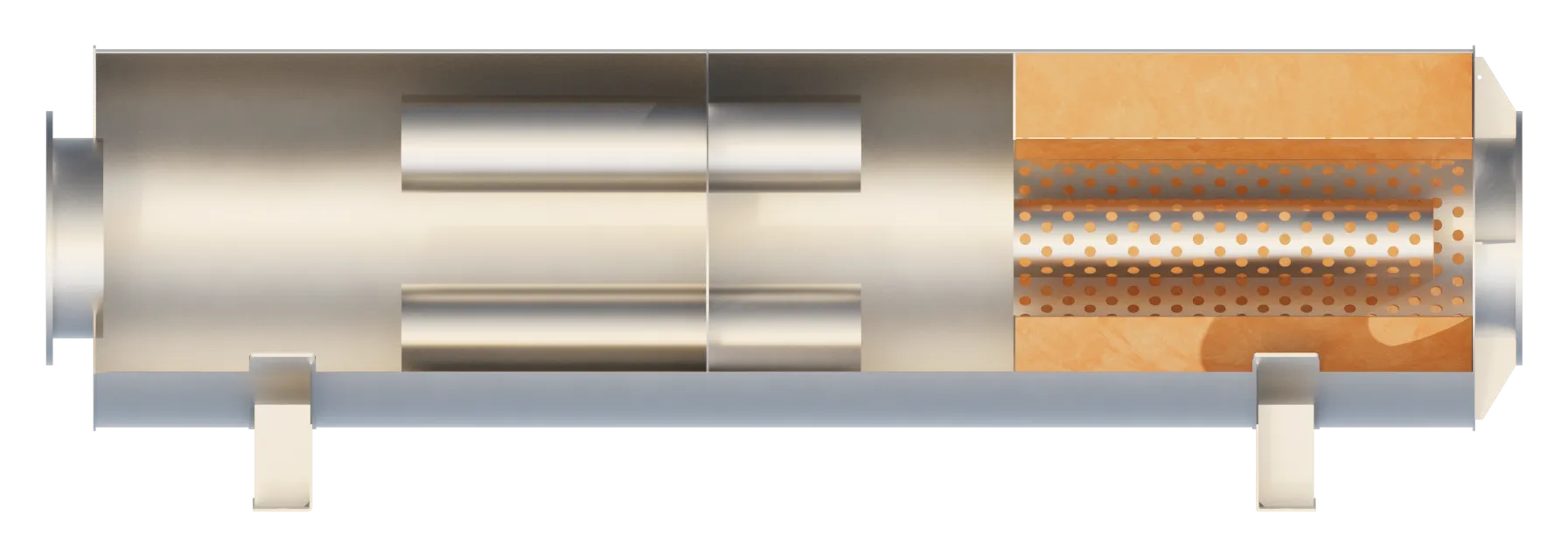

Each unit pairs an absorptive section (mineral-wool splitters faced in perforated stainless) with reactive expansion chambers tuned to the engine's firing frequencies. The split between the two is set by your octave-band data, so low-frequency rumble and high-frequency hiss are both brought within the limit.
Built To Your Specification
There is no catalogue part number. We start from your acoustic survey and process data, then design, manufacture and commission a unit that meets the target on site.
We review octave-band sound data, gas flow, temperature and back-pressure limits to define the required insertion loss.
Acoustic and mechanical engineers size the absorptive and reactive elements, then produce GA and fabrication drawings for approval.
The unit is fabricated and quality-checked at our own production facility in Poland to the approved specification.
Units are shipped, installed and verified against the acoustic target, with documentation handed over on completion.
From the Knowledge Hub
Insertion loss, transmission loss and attenuation are often used interchangeably, and they shouldn't be. Here's how Axces engineers turn a noise survey into a silencer that meets the limit on site.
Read the articleCapabilities
What separates an Axces unit from a catalogue part.
Acoustic
Reactive, absorptive and combination designs tuned to your measured octave-band spectrum, not a one-size class, engineered to the strictest site noise limits.
Flow
Flow paths verified by CFD so attenuation never comes at the cost of engine back-pressure or fuel penalty.
Materials
Carbon, stainless and high-alloy steels rated to 550 °C continuous, selected for the gas stream and duty.
In-house
Acoustic and structural calculation, approval drawings and QA from a single source, one responsible partner.
Reference project
Confidential datacenter operator
Axces engineered one repeatable exhaust-silencer-and-chimney design and delivered it fourteen times, holding a hyperscale datacenter’s diesel backup gensets to 75 dB(A) at one metre, with self-supporting chimneys CE marked to EN 13084-7.
Applications
The same range serves very different duties. Each project is engineered to its noise limit and gas conditions.
Power generation
Single units to complete exhaust trains for gas-turbine and reciprocating-engine installations.
Read moreData centers
Emergency standby generator exhausts engineered to meet strict urban and campus noise limits.
Read moreMarine & offshore
IMO-compliant exhaust lines for commercial vessels, ferries and offshore platforms.
Read moreOil & gas
Turbine and compressor-drive exhausts in refineries, terminals and pipeline stations.
Read moreIndustrial & EPC
Complete silencer and chimney packages delivered to EPC contractors as a single scope of supply.
Read moreSend us your noise survey, gas data and duct geometry. We'll come back with a sized solution and a guaranteed insertion loss.
