Dispersion Control
Two or more independent flues carried inside a single self-supporting steel windshield: the standard answer for combined-cycle blocks, engine halls and multi-unit plants. One foundation, one wind obstacle, a flue per unit, with the differential thermal movement that defines the design engineered in.
Windshield Flues See It Inside

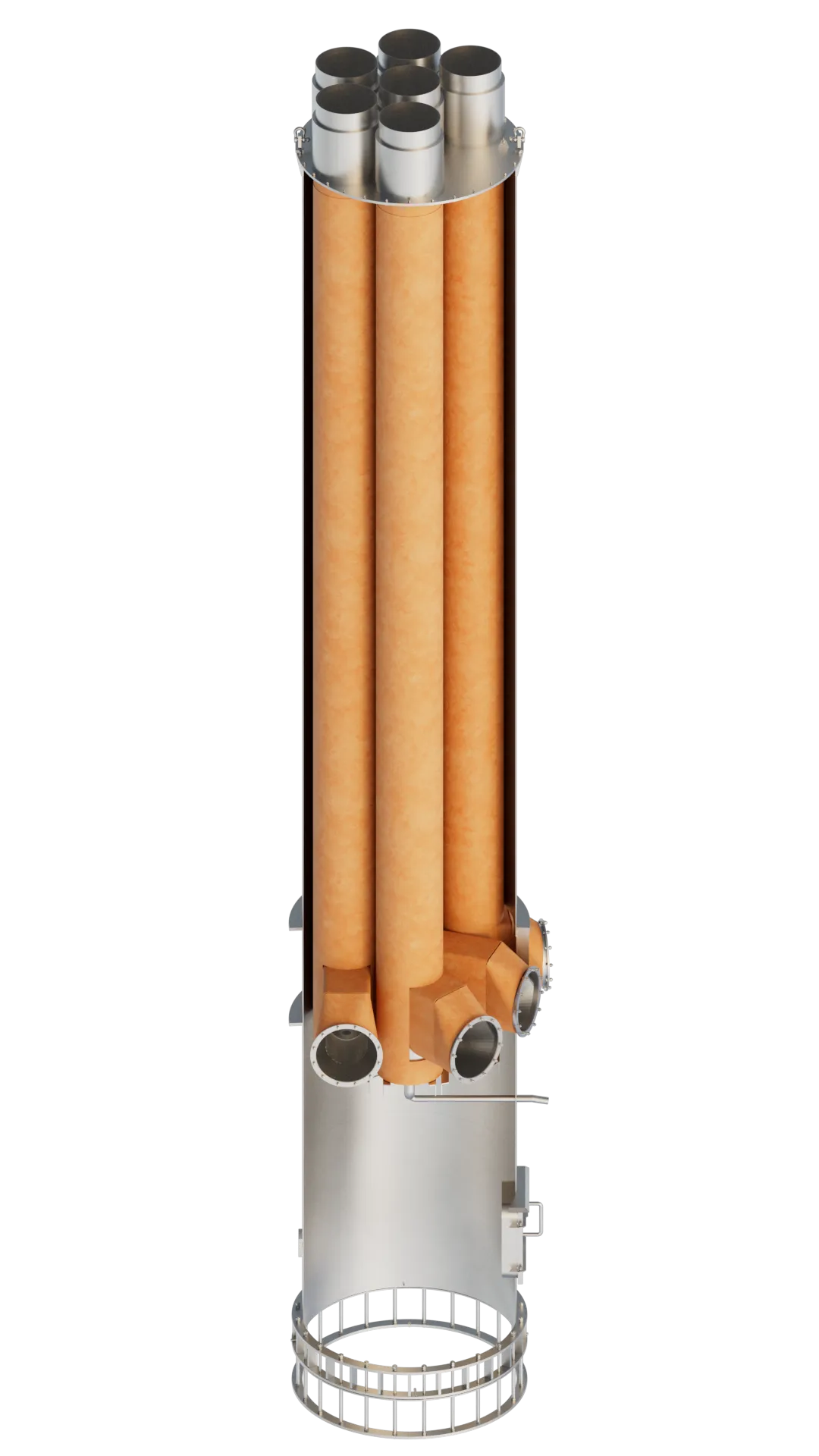

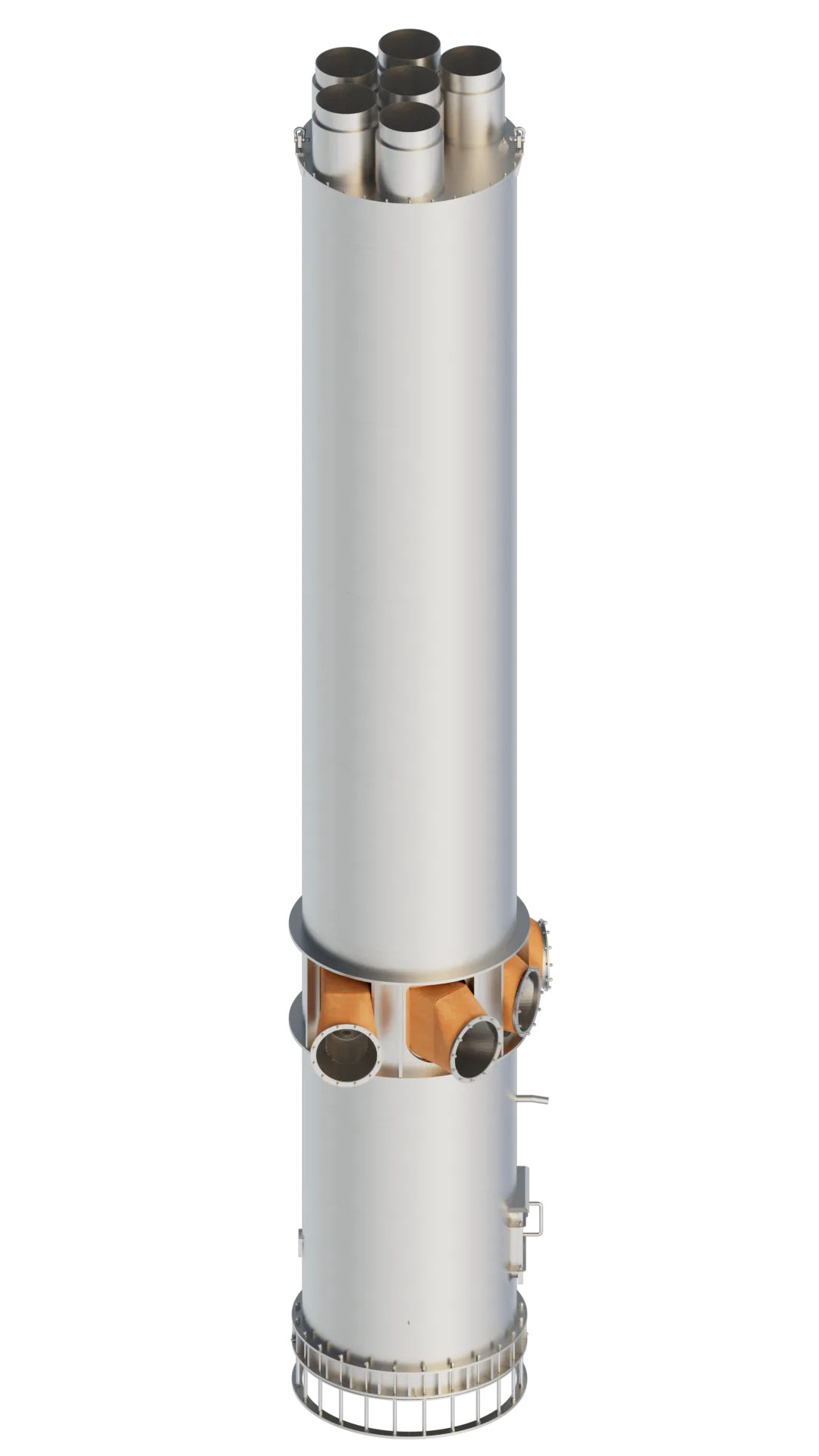

Drag the handle to compare the windshield with the cutaway and see the insulated flues guided inside the load-bearing shell.

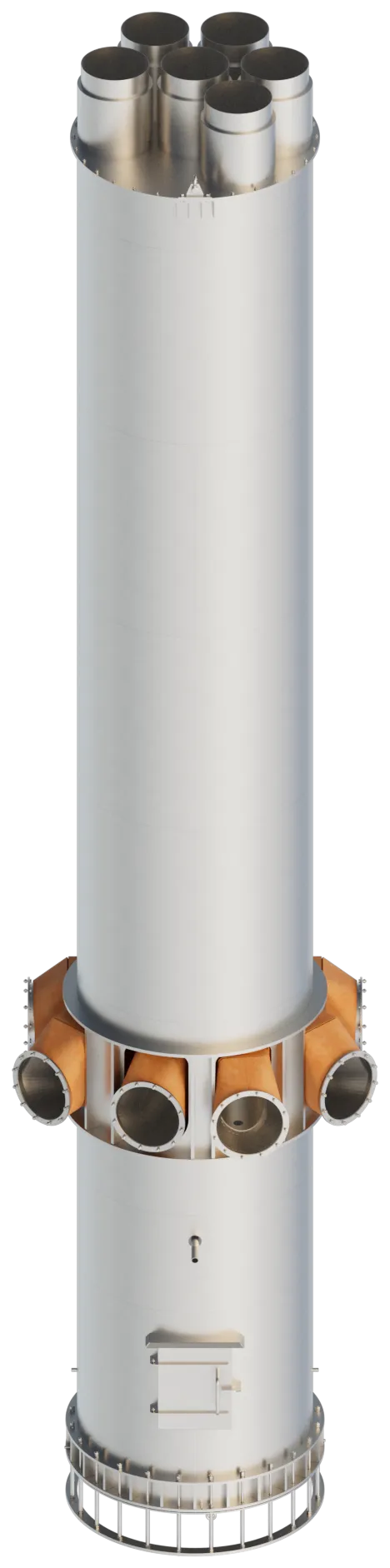

A multi-flue stack separates the two jobs every chimney performs. The windshield (a self-supporting steel shell) provides the structure, resisting wind and seismic actions and carrying access; the flues inside carry the gas, each an insulated duct serving one turbine train, engine bank or boiler. Because the windshield shelters them, the flues see no wind load and can be built in thin plate matched to their own gas chemistry; because the flues carry the heat, the windshield stays near ambient and is designed as a conventional steel chimney.
Built To Your Specification
The windshield stays near ambient while each flue runs hot, and the flues move relative to the shell and to each other, every start and stop. Where the supports and guides belong is the outcome of the thermal design, not a rule of thumb.
We take the number and type of units, the gas temperature, velocity and chemistry per flue across the load range, the required height, and the site’s wind and seismic climate, plus any spare flue position for future units.
Engineers size the windshield as a steel chimney to EN 1993-3-2 or CICIND, then support each flue at one level with lateral guides up the stack, clearances chosen so no flue binds in any combination of hot and cold neighbours, to EN 13084-6.
Windshield and flue sections are fabricated modularly and CE-marked under EN 1090 to the required execution class, so flues install efficiently within windshield sections during erection.
Sections are delivered match-marked, erected and handed over with the structural, welding, NDT and coating documentation, plus emission-measurement ports per flue.
From the Knowledge Hub
How a single windshield carrying several independent flues keeps exit velocity at part load, isolates units, designs out the wind interference of a row of slender stacks, and why differential thermal movement is the defining design detail.
Read the articleCapabilities
What a multi-flue windshield demands beyond a single-flue chimney.
Thermal
Each flue supported at one level and free to slide, with guides and clearances set so it can grow tens of millimetres against the cool windshield (and against hot or cold neighbours) without binding.
Configuration
Separate flues keep design exit velocity at part load, isolate a running unit’s gas from an idle one, allow a flue to be inspected while the plant runs, and leave a spare position for future units.
Aerodynamic
One wider, stockier windshield replaces a row of dynamically coupled slender stacks, removing the wake-buffeting and interference checks EN 1991-1-4 demands of grouped chimneys, while the windshield itself is verified for vortex excitation.
In-house
Structural windshield, internal flues, guides and access engineered, fabricated to EN 1090 and erected from a single source, one responsible partner for the whole stack.
Applications
Plants with several emission sources and room (and consent) for one chimney.
Power generation
One windshield carrying the heat-recovery and bypass flues of a combined-cycle block, each flue sized for its own gas conditions.
Read moreIndustrial & EPC
Multi-engine and multi-boiler plants grouped into one stack, delivered to EPCs as a combined stack-and-steel scope.
Read moreData centers
Backup-generator exhausts grouped into a shared windshield where plot and permitting favour one structure over a row of stacks.
Read moreOil & gas
Multiple fired and process sources combined into one chimney, with flue materials matched per stream.
Read moreMaritime & shore
Grouped exhausts for shore-power and terminal installations, engineered for coastal wind and corrosivity.
Read moreSend us the unit count and per-flue gas data, the required height and your site constraints. We’ll size a windshield and flue arrangement with the thermal movement engineered in.
