Emission Control
Systems that take entrained liquid and solids out of a gas stream (knockout drums, vane and mesh demisters, cyclones and coalescers), removing droplets, mist and particulate before they reach downstream emission, noise or pressure equipment or leave the stack. Sized to the stream and the required separation efficiency.

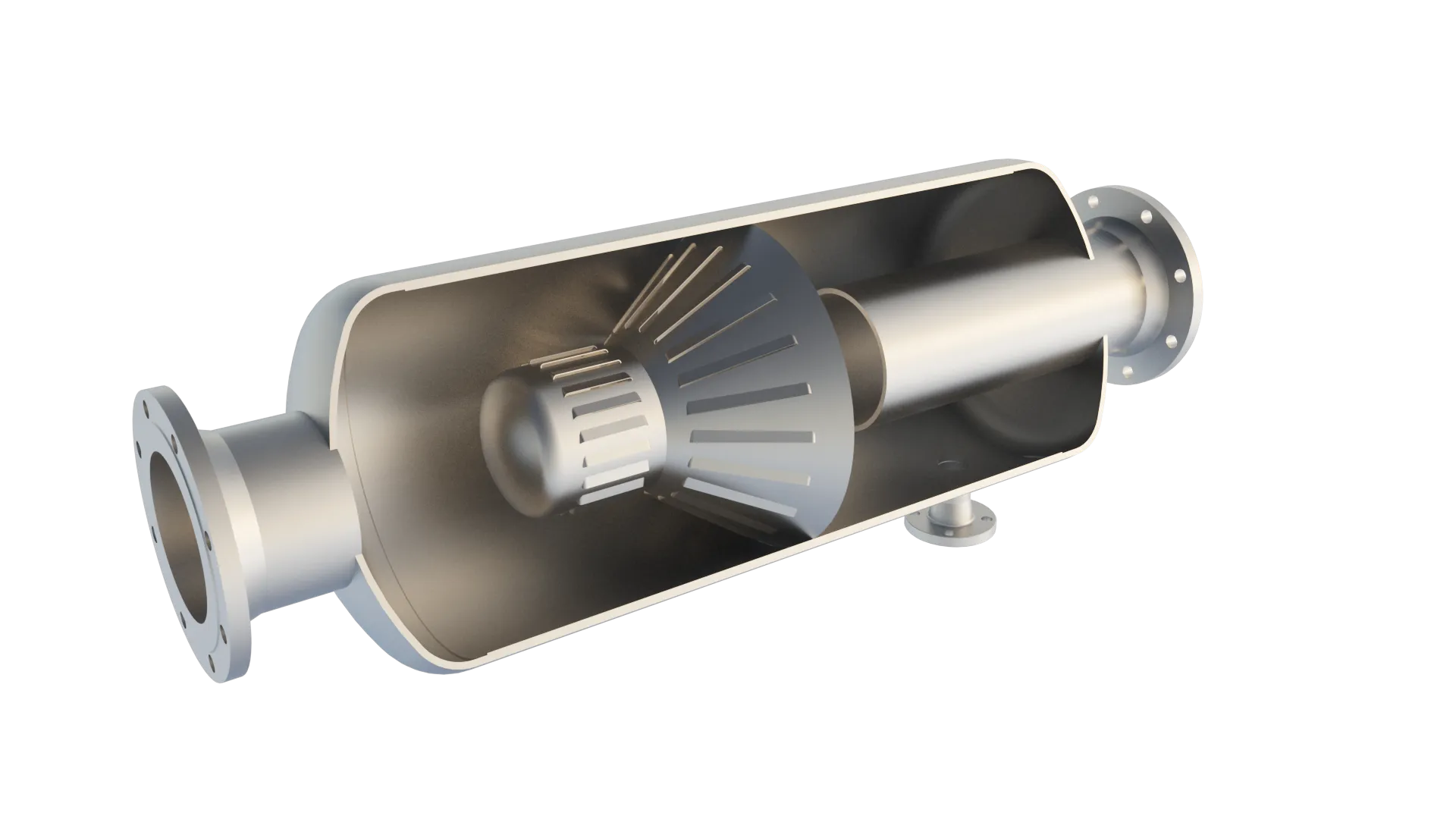

Shell Internals See It Inside

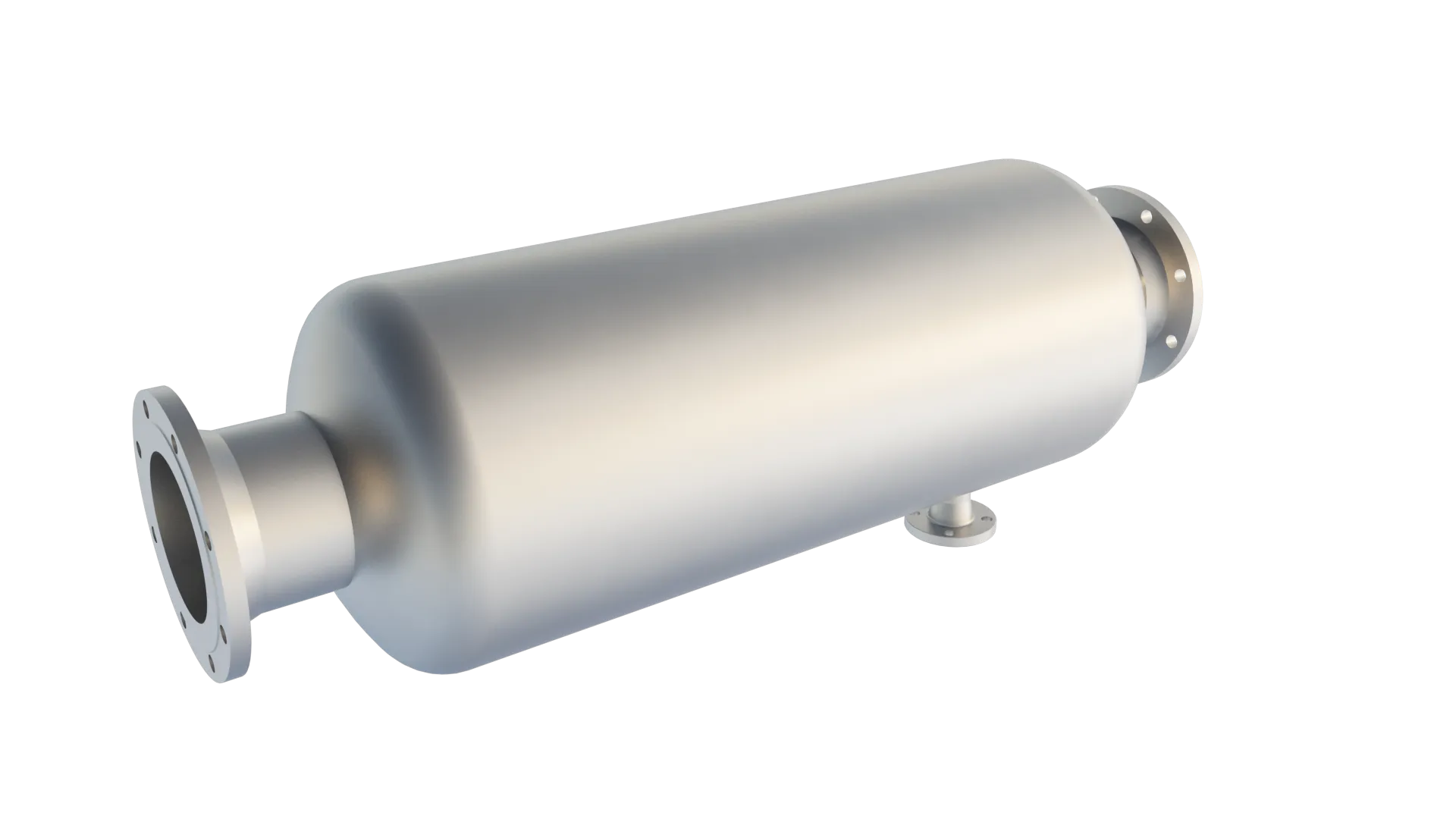

Drag the handle to compare the vessel with the cutaway and see the internals that take liquid and solids out of the gas.

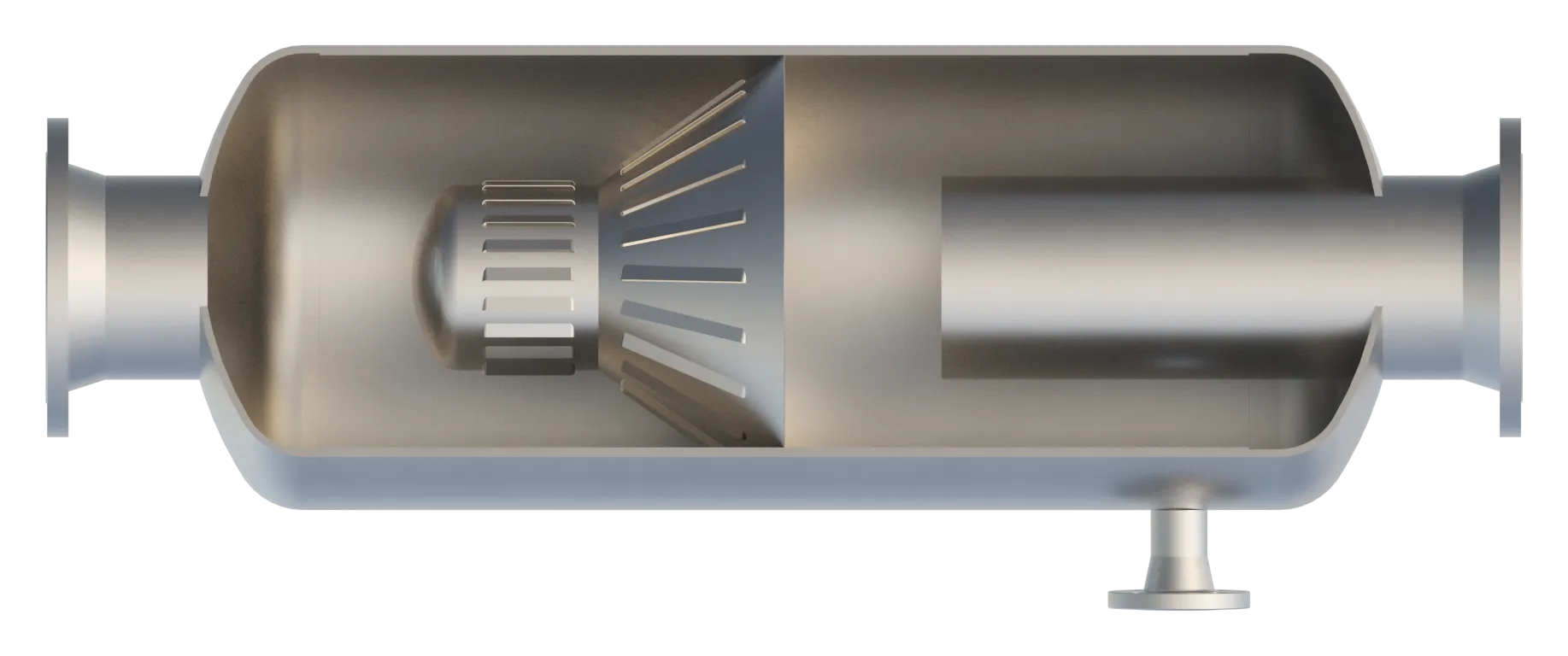

Separation works in stages matched to droplet and particle size. A knockout section drops out the bulk liquid by gravity as the gas slows and changes direction; a vane or wire-mesh demister captures the finer droplets by impingement; a coalescer merges sub-micron mist into drainable drops; and a cyclone spins out solid particulate. The combination (and the gas velocity through it) is set by the separation efficiency the duty requires and the pressure drop the system can spend, with drainage that keeps captured liquid out of the gas path.
Built To Your Specification
Separation is a balance of efficiency against pressure drop, set by what is in the gas and how much must come out. There is no catalogue answer. We size each system from the stream analysis.
We take the gas flow, temperature and pressure, the nature and load of the entrained phase (bulk liquid, fine mist, oil aerosol or solid particulate), the droplet or particle size, and the required separation efficiency or downstream cleanliness.
Engineers select and stage the separation elements (knockout, vane or mesh demister, coalescer, cyclone) and set the vessel size and velocity to meet the efficiency target within the allowable pressure drop.
The vessel and internals are fabricated at our own facility in materials matched to the stream, CE-marked under the PED where it falls in scope, with drainage and inspection access designed in.
Systems are installed and handed over with documentation on completion.
From the Knowledge Hub
Separation is often the first stage of a gas clean-up train. This guide to diesel particulate filtration explains how soot is captured, the regeneration problem, and where particulate control sits alongside SCR, the downstream stages a separation system is there to protect.
Read the articleCapabilities
What effective gas separation demands beyond a single element.
Selection
Knockout, vane or mesh demister, coalescer and cyclone selected and staged to the droplet and particle size in the stream, the right element for each fraction, not one device for all.
Flow
Vessel size and velocity set to hit the required separation efficiency within the pressure drop the system can spend, the balance at the heart of the sizing.
Protection
Droplets, mist and particulate taken out before they foul a catalyst, blind acoustic fill, erode a silencer or carry over the stack, protecting the equipment behind it.
Materials
Corrosion-resistant materials and coatings selected for the gas chemistry, temperature and the captured liquid, with drainage that keeps it out of the gas path.
Applications
Wherever entrained liquid or solids must come out of a gas stream, ahead of equipment or before discharge.
Oil & gas
Inlet knockout drums and coalescers protecting compressors, burners and downstream equipment from liquid carry-over.
Read moreIndustrial & EPC
Demisting and particulate separation on process and vent streams, delivered within a single emission-control scope.
Read morePower generation
Condensate and droplet separation on exhaust and steam systems, protecting SCR catalyst and silencer internals.
Read moreEmission control
Pre-treatment that takes mist and particulate out of the gas before scrubbing, SCR or filtration, so the downstream stage performs as designed.
Read moreMarine & offshore
Separation on marine exhaust, vent and process gas systems, in compact, corrosion-resistant arrangements.
Read moreSend us the gas conditions, the entrained phase and load, and the separation target. We’ll size a system that hits it within your pressure-drop budget.
