Pressure Control
Engineered-to-order pressure vessels for industrial process and exhaust systems: designed to EN 13445, CE-marked under the applicable PED 2014/68/EU category, with notified-body conformity assessment where the category requires it and the supporting dossier delivered with every vessel.

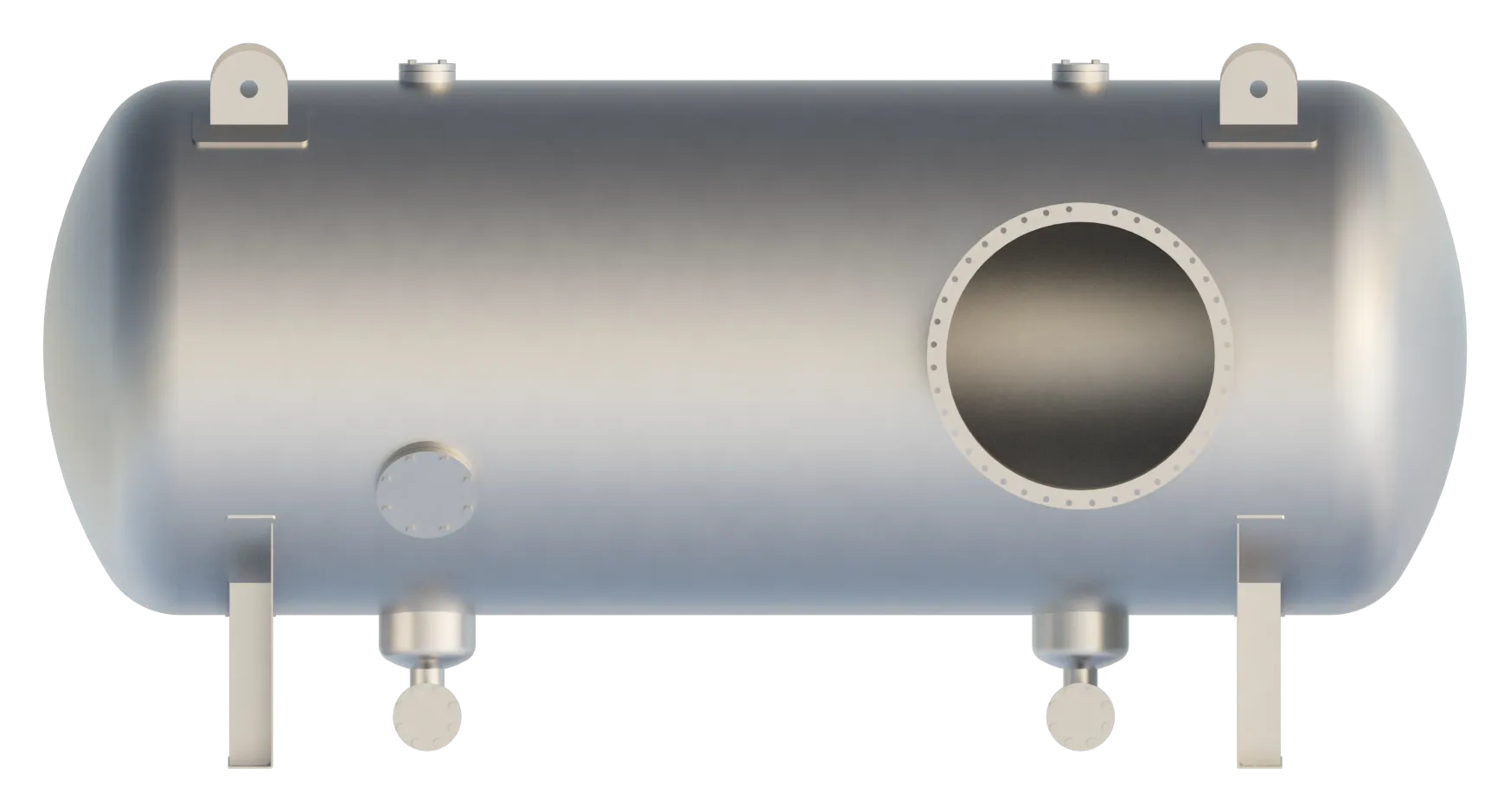

Shell Internals See It Inside
Drag the handle to compare the shell with the cutaway and see the pressure-bearing parts and internals behind it.
A pressure vessel is designed for all foreseeable loadings (pressure, temperature, wind and seismic, reaction forces, corrosion and fatigue) with adequate safety coefficients, to the essential safety requirements of the PED. Designing to the harmonised EN 13445 series for unfired pressure vessels gives a presumption of conformity. Main pressure-bearing parts carry material certificates of specific product control, welding procedures and welders are approved, and final assessment includes a proof test, normally hydrostatic.
Built To Your Specification
Under the PED, the paper trail is as much a deliverable as the steel. We establish the classification, match the conformity-assessment module to it, and hand over the full dossier.
We establish the fluid and its group, the maximum allowable pressure PS and volume V, and read the resulting category I–IV from the correct Annex II table, the basis for everything that follows.
The vessel is designed to the harmonised EN 13445 series for all foreseeable loadings with adequate safety coefficients, meeting the PED essential safety requirements.
Fabricated at our own facility with approved welding procedures and welders, specific material certificates for main pressure parts, NDT to the category, and notified-body conformity assessment under the appropriate module.
CE-marked under the applicable category (with the notified-body number where required) and delivered with the EU declaration of conformity, material, weld, NDT and proof-test records, and operating instructions.
From the Knowledge Hub
How fluid group, pressure and volume set a vessel’s category I–IV, which conformity-assessment module each category demands, and the eight things a buyer should verify before accepting a CE-marked vessel.
Read the articleCapabilities
What an engineered-to-order pressure vessel has to demonstrate.
Conformity
Classified by fluid group, PS and volume to the correct category I–IV, with the conformity-assessment module, up to notified-body unit verification (Module G) for one-off category IV vessels, matched to it.
Design
Designed to the harmonised EN 13445 series for a presumption of conformity, for all foreseeable loadings (pressure, temperature, wind, seismic, reaction, corrosion and fatigue) with adequate safety coefficients.
Engineered to order
Each vessel engineered to the process duty (shell, heads, nozzles and internals) rather than picked from a range, with the design code declared so future requalification and repair have a defined basis.
Documentation
Every delivery includes the EU declaration of conformity, specific material certificates for main pressure parts, approved weld and NDT records, and proof-test reports, audit-ready at handover.
Applications
Process and exhaust-system vessels across industry, each classified and certified to its duty under the PED.
Oil & gas
Separators, knockout drums and process vessels in Group 1 and Group 2 fluid service, classified and certified to the PED category.
Read moreIndustrial & EPC
Receivers, buffer and utility vessels delivered to EPC contractors with the full PED dossier as part of a single scope.
Read morePower generation
Steam, condensate and utility vessels for power and cogeneration plant, designed for temperature and cyclic duty.
Read morePressure control
The pressure-vessel basis behind pulsation dampeners and other Axces pressure-control equipment, code-certified to the same standard.
Read moreMarine & offshore
Pressure vessels for marine and offshore systems, engineered for the space, motion and corrosivity of the installation.
Read moreSend us the fluid, the design pressure and temperature, the volume and the duty. We’ll confirm the classification and certification route and engineer the vessel to EN 13445.
